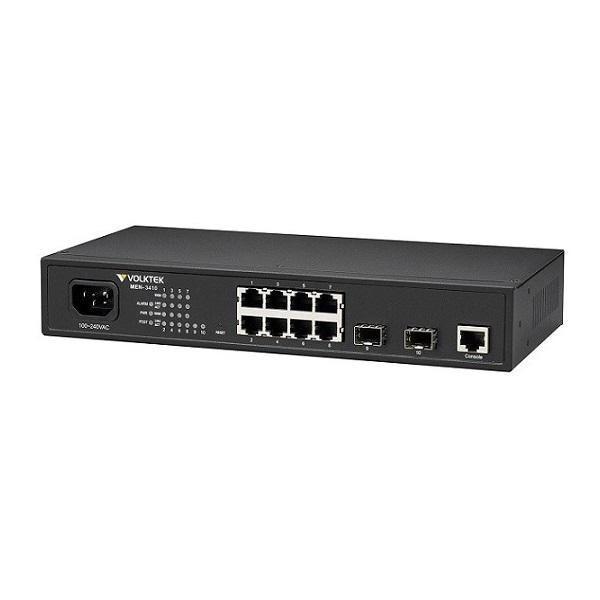

8-Port Gigabit + 2 SFP slot Gigabit Managed Core Switch VolkTek Men-3410
- 8 port LAN Gigabit + 2 slot SFP Gigabit + 1 Port console.
- Hỗ trợ layer 2: 802.1Q VLAN, Full layer 2 protocol.
- Port security: LACP trunking, STP/RSTP, Port base VLAN, storm control (Broadcast/Multicast), DHCP snooping/relay, limiting bandwidth, MVR, IGMP snooping (V1/V2/V3).
- Port based Loop detection with auto-recovery timer.
- SNMP V1/V2C.
- 802.1p Priority Queues per port.
- Full control via web UI/CLI.
- 1U, Power: AC 100~240VAC (optional 12~25V).
Đặc tính kỹ thuật
| PHẦN CỨNG | |
| Port | 8 x 10/100/1000BASE-T RJ45 Ports |
| 2 x 100FX/Gigabit SFP Slots | |
| 1 x RJ45 Console Port | |
| Nguồn | Primary inputs：AC 100~240 50~60Hz, 15V DC Power Adapter |
| Redundant inputs：12V Battery | |
| LED Indicators | PWR, ALARM, POST, 1000, LNK/ACT |
| Kích thước | 268 x 44 x 128mm (WxHxD) |
| Trọng lượng | 1.17Kg |
| PHẦN MỀM | |
| Chuẩn tương thích | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX/FX | |
| IEEE 802.3ab 1000BASE-T | |
| IEEE 802.3z 1000BASE-SX/LX | |
| IEEE 802.3ad Link Aggregation | |
| IEEE 802.3x Flow Control | |
| IEEE 802.1d STP | |
| IEEE 802.1w RSTP | |
| IEEE 802.1p CoS Prioritization | |
| IEEE 802.1q VLAN Tagging | |
| IEEE 802.3az Energy Efficient Ethernet | |
| Configuration | Command Line Interface, Telnet, Web GUI, Syslog |
| SNMP v1/v2c, Management VLAN, SNTP, Firmware | |
| Upgradable, Configuration Upload/Download | |
| VLAN | EEE 802.1Q Tag-based VLAN, Port Isolation |
| Traffic Control | IGMP snooping, QoS, Rate Limitation, Storm Control |
| Port Isolation, STP, RSTP, LLDP, LACP | |
| Diagnostics | LED status, SNMP trap, E-mail alarm, SFP DDMI,Port mirroring RMON, Port Statistic. |
| THÔNG SỐ KHÁC | |
| Môi trường | Operating Temperature 0°C~50°C |
| Storage Temperature -20°C~70°C | |
| Operating Humidity 10 to 80% RH (non-condensing) | |
| Storage Humidity 5 to 90% RH (non-condensing) | |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
