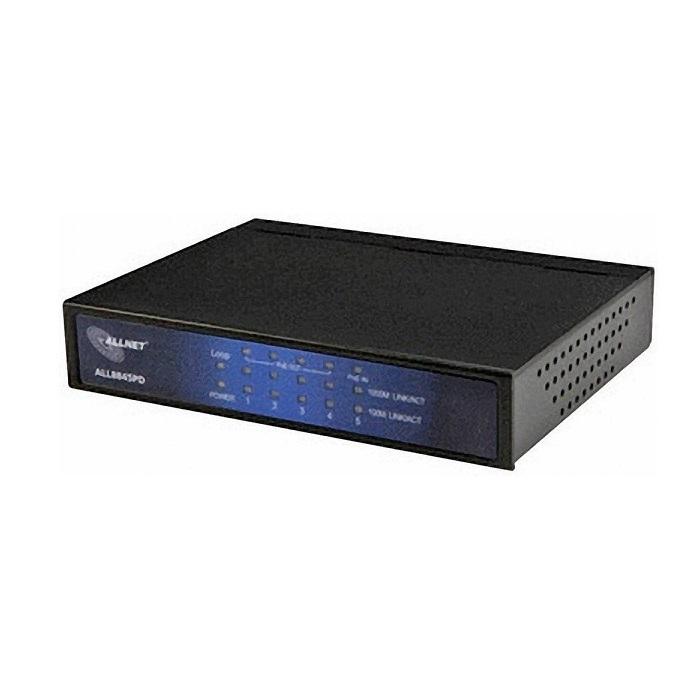

5-port 10/100/1000M PoE Ethernet Switch ALLNET ALL8845PD
- 5-Port 10/100/1000BaseT(X) with 4 PSE Port and 1 PD Port.
- Compliant with IEEE 802.3af/at.
- Metal Case with Palm Size.
- External Power Supply (Optional).
- Supports QoS, Loop detection Smart feature.
Specifications
| Model | ALL8845PD |
| Type | Layer 2-Switch, unmanaged |
| Standards | IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.ab 1000BaseT IEEE 802.3x Flow Control IEEE 802.3af PoE IEEE 802.3at PoE |
| Ports | 5 10/100/1000BaseT(X) with 4 PSE Port and 1 PD Port |
| Transmission Method | Store and Forward |
| Filtering/Forwarding Rates | 1000Mbps port - 1,488,000pps 100Mbps port -148,800pps 10Mbps port- 14,880pps |
| Transmission Media | 10BaseT Cat. 3, 4, 5 UTP/STP 100BaseTX Cat. 5 UTP/STP 1000BaseT Cat. 5E UTP/STP |
| Buffer Memory | 1024 KB |
| MAC Address Table | 2K |
| Led Indicators | Per Port: Link/Act, PoE Act/Status Per Unit: Power |
| PoE | Max. 25W distributed to all 4 ports with power supply via PoE (802.3at) Max. 70W distributed on all 4 ports with power supply per enclosed power adapter |
| Power Output | 48VDC |
| Dimensions | 130 x 97 x 24 mm |
| Weight | 1.3kg |
- Bảo hành: 24 tháng.
