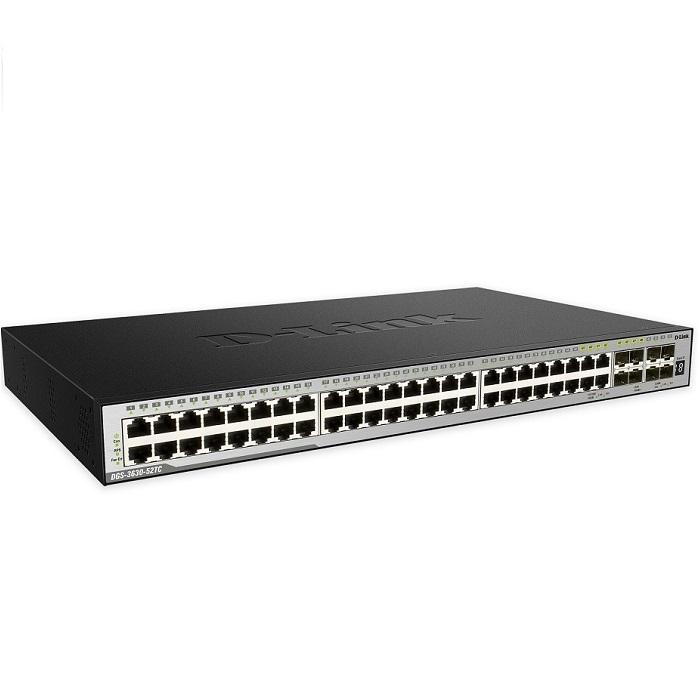

52-Port Layer 3 Stackable Managed Gigabit Switch D-Link DGS-3630-52TC
High Availability and Flexibility
- 44 10/100/1000BASE-T Ports
- 4 Combo 10/100/1000BASE-T/SFP ports
- 4 10-Gigabit SFP+ uplink ports
- Switch Resource Management (SRM) for flexible management of system resources
- 6 kV surge protection on all RJ45 access ports
Reliability
- Redundant Power Supply (RPS) support
- IEEE 802.1D/802.1w/802.1s Spanning Tree
- Loopback Detection (LBD)
- Ethernet Ring Protection Switching (ERPS)
High Bandwidth Stacking
- Physical stacking up to 9 units, 432 GbE ports
- Supports long-distance stacking over fiber
- 80 Gbps per device physical stacking bandwidth
Operations, Administration and Maintenance
- IEEE 802.3ah Ethernet First Mile (EFM)
- IEEE 802.1ag/ITU-T Y.1731 OAM
Easy Management
- RJ45/mini-USB console port
- Management and alarm ports
- USB port for firmware and configuration files
- Easy-to-use web GUI
- Industry standard CLI
Specifications
| Model | DGS-3630-52TC |
| Interfaces | |
| 10/100/1000BASE-T Ports | 44 |
| Combo Ports (10/100/1000BASE-T or SFP) | 4 |
| 10 Gigabit SFP+ Ports | 4 |
| Console Port | RJ45 and Mini USB console ports for out-of-band CLI management |
| Management Port | 10/100/1000BASE-T RJ45 Ethernet for out-of-band IP management |
| Alarm Port | RJ45 |
| USB Port | USB 2.0 Type A |
| Optional Redundant Power Supply | DPS-500A |
| Performance | |
| Switch Capacity | 128 Gbps |
| Packet Forwarding Rate | 130.95 Mpps |
| Packet Buffer | 4 Mbytes |
| MAC Address Table | 68K entries |
| IPv4 Routing Table | 16K entries |
| IPv6 Routing Table | 7K entries |
| IPv4 Forwarding Table | 32K entries |
| IPv6 Forwarding Table | 16K entries |
| Jumbo Frame Size | 12 KBytes |
| Physical and Environmental | |
| Power Input | 100 to 240 VAC, 50/60 Hz |
| Max Power Consumption | 62 W |
| Standby Power Consumption | 36 W |
| Dimensions | 441 x 260 x 44 mm |
| Weight | 4.04 kg |
- Bảo hành 36 tháng.
