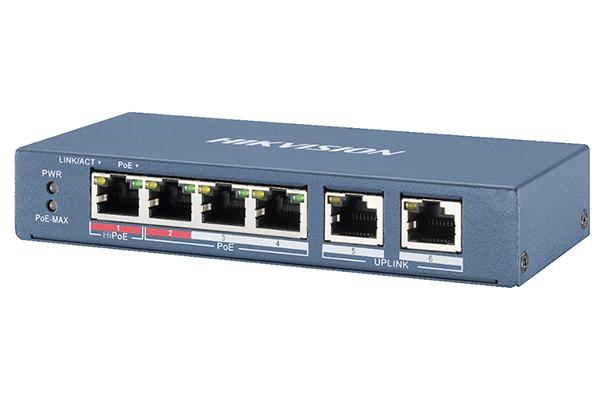

4-port 10/100Mbps Switch PoE + 2-port Uplink HIKVISION DS-3E0106HP-E

4-port 10/100Mbps Switch PoE + 2-port Uplink HIKVISION DS-3E0106HP-E

  • MS 000015171
  • HIKVISION
Giá : 745,000 vnđ (Đã bao gồm VAT)

4-port 10/100Mbps Switch PoE + 2-port Uplink HIKVISION DS-3E0106HP-E

4 port 10/100Mbps Switch PoE + 2 port Uplink HIKVISION DS-3E0106HP-E

- 1 x 10/100M Hi- PoE port.

- 3 x 10/100M PoE port.

- 2 x 10/100M Uplink Port.

- Tiêu chuẩn PoE: 802.3af, 802.3at, 802.3bt

- Công suất PoE tối đa: 65W

- Tích hợp công nghệ PoE Extend (tối đa 300m)

- Nguồn điện: 48VDC.

- Kích thước: 105×27.6×83.1mm.

- Trọng lượng: 200g.

Features

- Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.

- Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.

- 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.

- 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.

Đặc tính kỹ thuật

ModelDS-3E0106HP-E
PoE Power Supply
PoE StandardPort 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 2 to 4: IEEE 802.3af, IEEE 802.3at
PoE Power PinSupport 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide power supply simultaneously
PoE PortPorts 1 to 4
Max. Port PowerPort 1: 60 W
Ports 2 to 4: 30 W
PoE Power Pudget60 W
Max. Power Consumption65 W
Port Number1 × 10/100 Mbps Hi-PoE port, 3 × 10/100 Mbps PoE ports, and 2 × 10/100 Mbps RJ45 ports
Port Type
RJ45 port, full duplex, MDI/MDI-X adaptive
Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding ModeStore-and-forward switching
Working Mode
Standard mode (default); Extend mode
High Priority PortsPorts 1 to 2
Ports For Long-Distance TransmissionPorts 1 to 4
MAC Address Table2 K
Switching Capacity1.2 Gbps
Packet Forwarding Rate0.893 Mpps
Internal Cache768 Kbits
General
ShellMetal material, fan-free design
Dimension145 mm × 25.6 mm × 68.45 mm
Gross Weight0.77 kg (1.70 lb)
Net Weight0.24 kg (0.53 lb)

- Bảo hành: 24 tháng.
