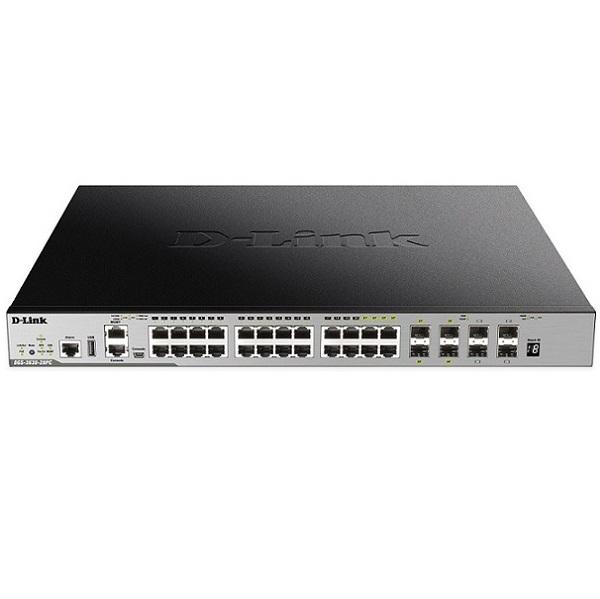

28-Port Gigabit Layer 3 Stackable Managed PoE Switch D-Link DGS-3630-28PC
-20 x 10/100/1000BASE-T PoE ports.
-4 x Combo 10/100/1000BASE-T PoE/SFP ports.
-4 x 10G SFP+ ports.
-/SI: Standard Image.
-Supports IEEE 802.3af/at Power over Ethernet.
-6 kV surge protection on all RJ-45 access ports.
-Switch Resource Management (SRM) for flexible management of system resources.
-Redundant Power Supply (RPS) support.
-MPLS L2VPM/L3 VPN support.
-Full L3 routing protocol support including OSPF, BGP, and ISIS for IPv4/IPv6.
-SDN-enabled switch, compatible with Openflow 1.3.
Technical Specifications
| 10/100/1000BASE-T PoE ports | 20 |
| Combo 10/100/1000BASE-T PoE/SFP ports | 4 |
| 10G SFP+ ports | 4 |
| RJ-45 and Mini-USB port | 1 |
| RJ-45 Management port | 1 |
| RJ-45 Alarm port | 1 |
| USB 2.0 port | 1 |
| Switch Capacity | 128 Gbps |
| Max. Packet Forwarding Rate | 95.24 Mpps |
| Store & Forwarding Forwading | Yes |
| Maximum Heat Dissipation | 1600.31 BTU/h |
| Dimension | 441mm x 380mm x 44mm |
| Maximum Power Consumption | PoE off: 44.3 W |
| PoE on: 469.3 W | |
| MTBF | 259,222.76 hours |
| Operating Altitude | Up to 2000 M |
| Operation Humidity | 10%-95% RH |
| Operation Temperature | -5-50°C |
| Standby Power Consumption | xxx Watt |
| Storage Humidity | 5% ~ 95% RH |
| Storage Temperature | -40-70°C |
| Weight | xxkg |
| Power Input | AC Input: 100 – 240 VAC, 50-60 Hz |
| Redundant Power Supply | Yes |
| CPU Speed | 1GHz |
| DRAM Size | 1GB (Byte)–DDR3 |
| Flash Memory Size | 1GB (Byte) |
| Packet Buffer Size | 4MB |
| PoE Budget | 370 W |
| Physical Stacking Bandwidth | 80 G (support stacking trunk) |
| Units Per Physical Stack | 9 |
| Units Per SIM Stack | 32 |
| MAC Address Table Size | up to 68K (SRM's LAN mode) |
| G.8032 ERPS | Yes (Support ERPSv2) |
| Link Aggregation Group Per Device | 32 |
| Max Port Per Link Aggregation Group | 8 |
| Routing Table Entry | 16K (16,384) |
| L3 Forwarding Table Entry | up to 32K (SRM' IP mode) |
| Default Route | Yes |
| L3 IP Multicast Entry | up to 8K (refer to SRM) |
| Number of Queue | 8 |
| Remark ToS/DSCP | Yes (Support remark IP precedence/DSCP) |
| 802.1Qbb Priority-based Flow Control (PFC) | Yes (only for 10G port) |
| Max Access Control List (ACL) Entries | 3072 |
| Trusted Host | Yes (via ACL) |
| IPv6 Ready Logo | pre-testing only |
| Jumbo Frame | 12K Bytes |
-Bảo hành: 36 tháng.
