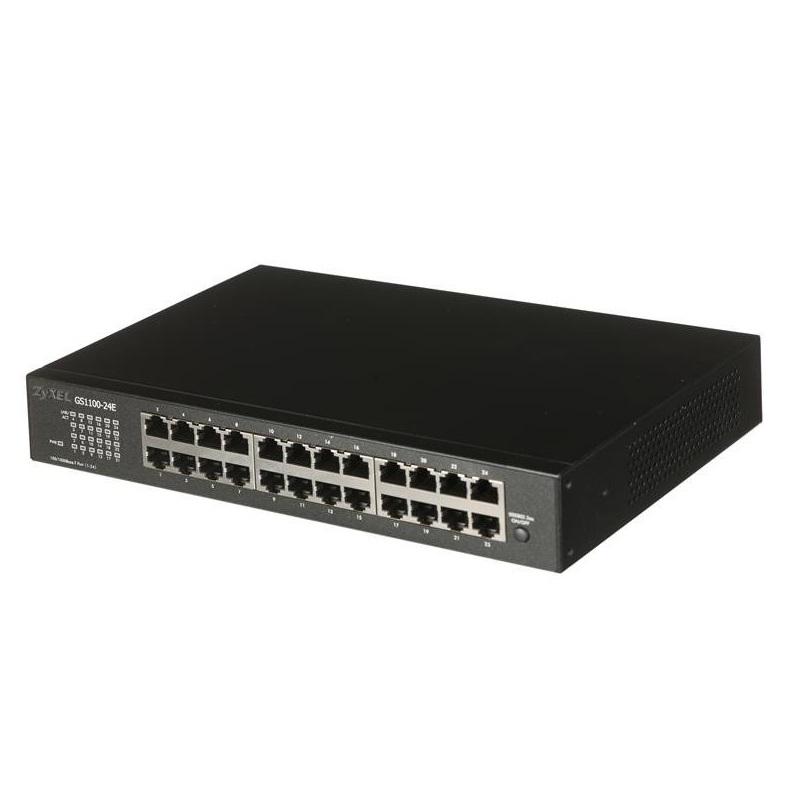

24-port GbE Unmanaged Switch ZyXEL GS1100-24E
The ZyXEL GS1100 Series is the best solution for instant Gigabit connectivity in office environments demanding silent operation and better energy efficiency. With power-saving functions, Gigabit Ethernet and a fanless design, the GS1100 Series provides plug-and-play simplicity for high-bandwidth network applications.
Features
Standard Compliance
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Ethernet
- IEEE 802.3ab 1000BASE-T Ethernet
- IEEE 802.3az EEE support
- IEEE 802.3x flow control
- IEEE 802.3z 1000BASE-X
- IEEE 802.1p CoS
- IEEE 802.3af PoE (GS1100-8HP)
- IEEE 802.3at PoE Plus (GS1100-8HP)
Safety Agency Certification
- EMC
o CE, FCC, C-Tick, Class A (GS1100-8HP/24)
o CE, FCC, C-Tick, Class B (GS1100-16, 24E)
o BSMI CNS13438
- Safety
o LVD EN60950-1
o BSMI CNS14336-1
- RoHS compliant
Specifications
| Model | GS1100-24E |
| Port Density | |
| Total port count | 24 |
| 1000BASE-T | 24 |
| Performance | |
| Switching capacity | 48 Gbps |
| Switching forwarding rate | 35.7 Mpps |
| Packet buffer (byte) | 525K |
| MAC Address Table | 8K |
| VLAN Support | Yes |
| Jumbo Frames (byte) | 10K |
| 802.1p CoS | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| VLAN packet pass-through | Yes |
| Power Requirement | |
| Input Voltage | 100 - 240 VAC, 50/60 Hz |
| Maximum power consumption | 15.3W |
| Storage Temperature | -40°C to 70°C |
| Operating Temperature | 0°C to 50°C |
- Xuất xứ tại Trung Quốc.
- Bảo hành: 24 tháng.
